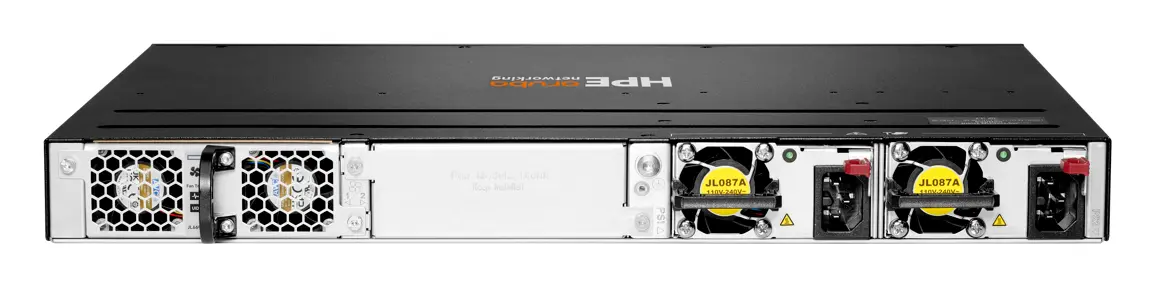

Aruba R8Q68A CX6200M 24G Class4 PoE 4SFP+ PoE Switch

ModelR8Q68A

Aruba R8Q68A, 48 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 740 W. 4 adet SFP portu ile fiber uplink bağlantısı kurulabilir.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi- Edit Software supports for automation, configuration and verification

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 1 satır

Ürün Adı (Üretici)	HPE Networking CX6200M 24G Class4 PoE 4SFP+ Switch

Teknik Özellikler 11 satır

Model Farkı	Class 4 PoE/PoE+
Güç Tüketimi	76W at 230 VAC
Portlar	24 x 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port 4 x 1/10G SFP ports (2 x LRM; 2 x LRM/MACSec 256) Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port
Anahtarlama Kapasitesi	128 Gbps
Veri Hızı	Up to 95.2 Mpps
Bellek ve İşlemci	CPU: Quad-core Arm® Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC
Güç Kaynağı	2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL086A JL087A Max PoE Power: 740W
PoE Kapasitesi	740W
Çalışma Sıcaklığı	32°F to 113°F (0°C to 45°C) up to 5000 ft; derate 1°C for every 1000 ft from 5000 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods of time.
Yönetim Özellikleri	Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Garanti	Limited lifetime warranty.

Seri Özellikleri 4 satır

Giriş Gerilimi	100V–120V/200V–240V
Gecikme	1 Gbps: 2.28 μ Sec 10 Gbps: 1.46 μ Sec
İstifleme (Stack)	8-members
Fanlar	Fixed fans

Genel bakış

Aruba R8Q68A kullanım alanları ve özellikleri.

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer.

Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as

The HPE Aruba Networking CX 6200 Switch Series provides Layer 2/3 access switching with high performance, security, and ease of use for latency-sensitive, AI resources at the enterprise edge, SMB, and branch office networks.

Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi- Edit Software supports for automation, configuration and verification

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - HPE Aruba Networking CX 6200 Switch SeriesPDF · R8Q68A

Sık sorulanlar

R8Q68A hakkında kısa yanıtlar.

R8Q68A IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 740 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

R8Q68A kaç portlu?

R8Q68A 48 porta sahiptir ve 4 adet SFP uplink portu bulunur.

R8Q68A fiyatı ne kadar?

R8Q68A için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
