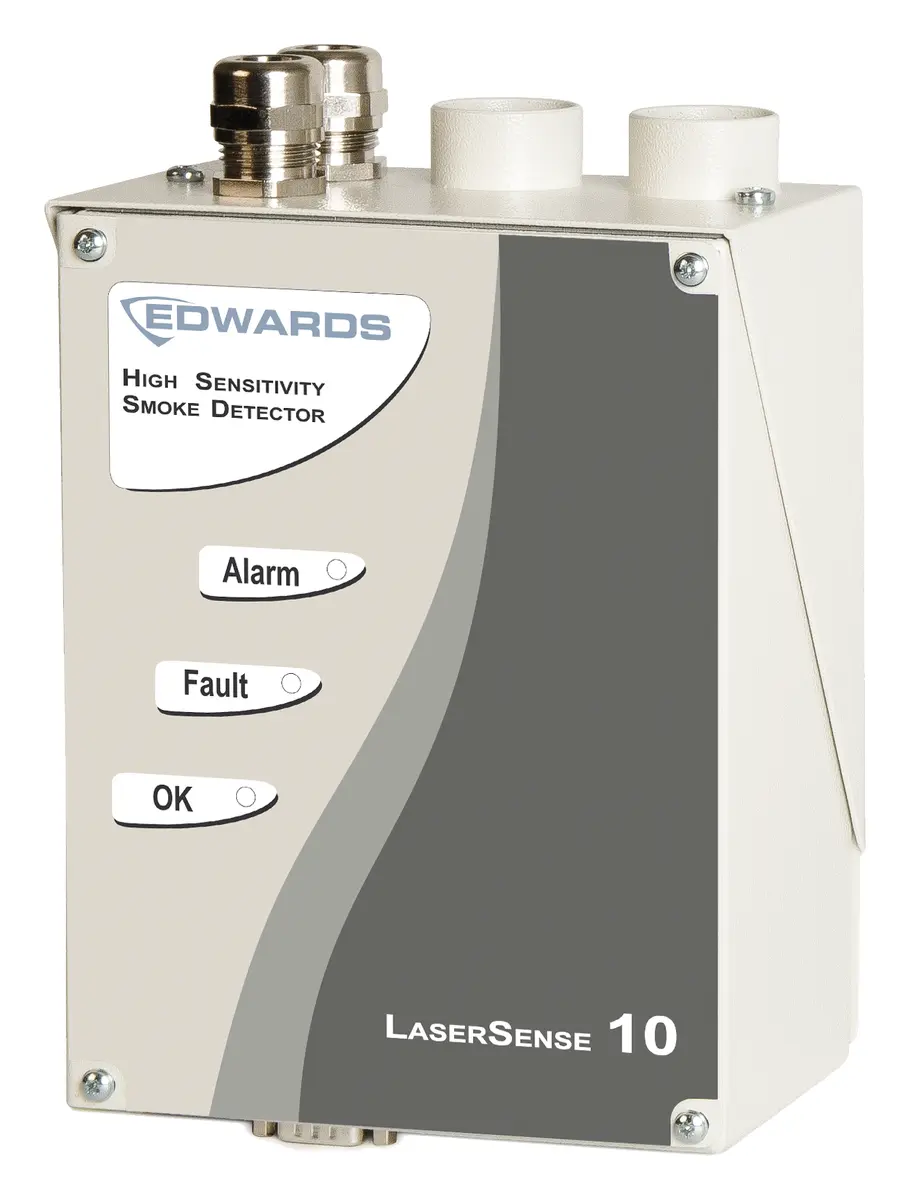

Aritech FHSD8015-99 Hava Örneklemeli Duman Dedektörü

Aritech FHSD8015-99 (LaserSense 10 ailesi), hava örneklemeli duman dedektörü ürünüdür. EN54-20 standart/onaylarına uygundur.

Description

The LaserSense 10 is designed to provide very high sensitivity smoke detection in a small package.

ClassiFire Perceptive Artificial Intelligence ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup. This means the product will configure itself to provide high sensitivity in a computer room or reduced sensitivity in a smoky area.

The detector is designed to fit into a Docking Station. All sampling pipes and cables are connected to the Docking Station as a first fix operation leaving the detector to be fitted during the final commissioning phase if required. This ensures that detectors are less likely to be damaged during the installation.

Upgradable volt-free Fire and Fault relay outputs are available for remote monitoring by local fire detection or BMS systems.

Typical Applications

• Data storage units • Prison cells • Plant rooms • Air conditioning units • Equipment racks • Computer rooms • Air duct protection • Heritage property protection • Critical equipment • Anti-smoking enforcement • Motor rooms

Options Available

• Addressable Protocol Interface Cards APIC™ available • Relay expansion card

Öne Çıkan Özellikler

• Ultra small low cost aspirating smoke detector for easy and discreet installation
• High sensitivity provided by laser based forward light scatter for reliable early warning
• Single sampling pipe up to 50m in length (still air)
• Unique ClassiFire® Perceptive Artificial Intelligence system that dynamically adjusts the detector’s operating parameters, allowing for day to day changes in the protected environment and dust separation system contamination
• Unwanted alarms from dust are avoided using patented Dual Technology LDD 3D3 Laser Dust Discrimination and elimination system
• CPR approved

Nerelerde kullanılır?

Yangını duman veya ısı artışıyla en erken aşamada algılayarak yangın alarm paneline bildirir; tahliye için kritik zaman kazandırır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
