Aritech FE570 Yangın Kapı Tutucu Mıknatısı

Aritech FE570 (Door Holder Adjustable - 490N ailesi), yangın kapı tutucu mıknatısı ürünüdür. VdS standart/onaylarına uygundur.

General

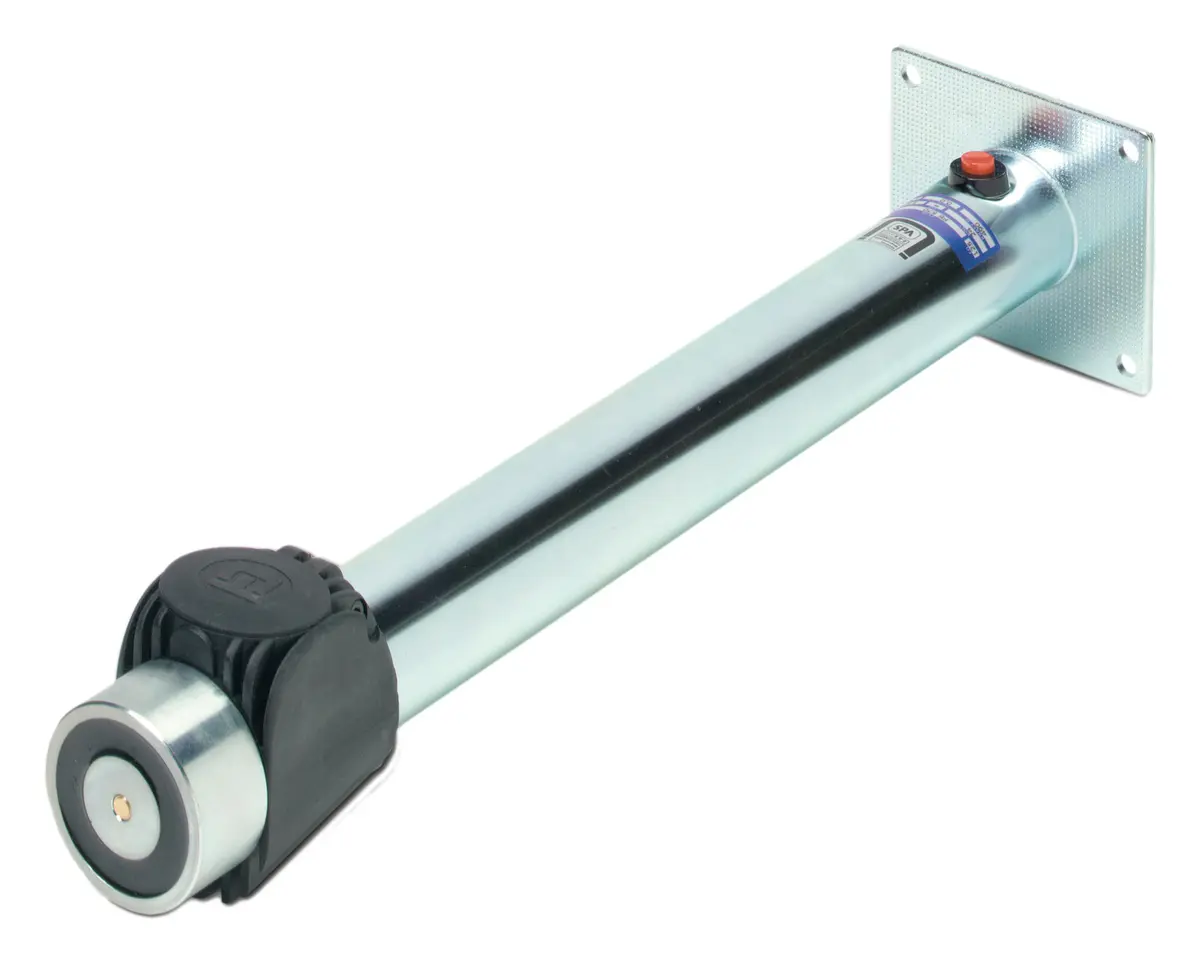

The FE570 is a universal, adjustable door-magnet.

A magnet for all occasions

The FE500 series door holding magnets are the result of years of specialised development. Rated at just 1.5 W @ 24VDC, these powerful magnets pack a holding power of 490N. All magnets have a spring-loaded pin to ensure ejection against remnant magnetism.

Application friendly

The FE500 series offer cost effective solutions without sacrificing performance. Reinforced aluminium gives it a smart look and rugged endurance, whilst the reinforced wall mount aluminium extensions allow covering of installation between the door and the wall. Keeper plates are not supplied with the magnet and can be ordered seperately according the application.

Installer friendly

For practical ease of installation, all units are complete with electrical terminations. Protection diodes prevent electromagnetic pulses and provide reverse polarity protection, as well as speeds up installation. The mountings are predrilled in a practical, standard format for rapid mounting.

Approvals

All models are VdS approved.

Öne Çıkan Özellikler

• Strong body
• Floor mounting
• 490N holding force
• Push-off pin
• No remanent magnetism
• Low power - 1.5 W
• Reverse polarity protection
• VDS approval

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Universal Door-Magnet, Adjustable
• Strong body
• Floor mounting
• 490N holding force
• Push-off pin
• No remanent magnetism
• Low power - 1.5 W
• Reverse polarity protection
• VDS approval
