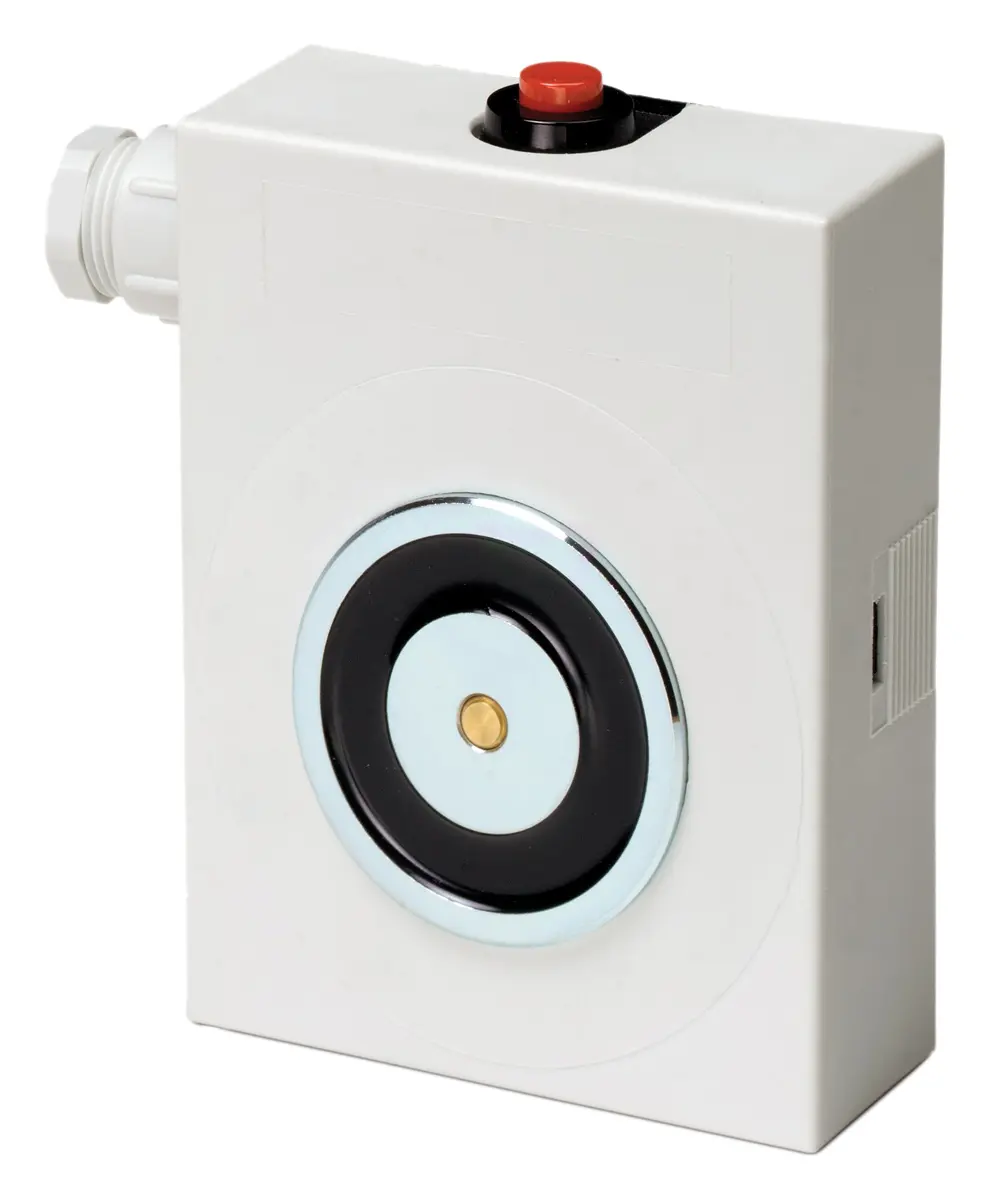

Aritech FE543 Yangın Kapı Tutucu Mıknatısı

Aritech FE543 (Door Holder Magnet - 490N ailesi), yangın kapı tutucu mıknatısı ürünüdür. VdS standart/onaylarına uygundur.

General

The FE543 is a VDS approved door holder in a reinforced plastic box.

A magnet for all occasions

These door holding magnets are the result of years of specialised development. Rated at just 1.5 W @ 24VDC, these powerful magnets pack a holding power of 490 N. All magnets have a spring-loaded pin to ensure ejection against remnant magnetism.

Application friendly

The reinforced plastic box model offers a cost effective solution without sacrificing performance. The FE543 is supplied without a keeper plate. This may be ordered separately depending on the application.

Installer friendly

For practical ease of installation, all units are complete with electrical termination. Protection diodes prevent electromagnetic pulses, and reverse polarity protection speeds up installation. The boxes are predrilled in a practical, standard format for rapid mounting.

Approvals

All models are VdS approved. (Refer to the device specification)

Öne Çıkan Özellikler

• Complete range for wall and surface mount
• Low power - 1.5 W
• 490 N holding power on VDS coils
• 100% duty cycle
• Anti-remnant ejector
• Protection diode and reverse polarity protection
• Release button
• VdS approved (see specification)

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• Door Holder, Reinforced Plastic Box, VDS Magnet
• Complete range for wall and surface mount
• Low power - 1.5 W
• 490 N holding power on VDS coils
• 100% duty cycle
• Anti-remnant ejector
• Protection diode and reverse polarity protection
• Release button
• VdS approved (see specification)
