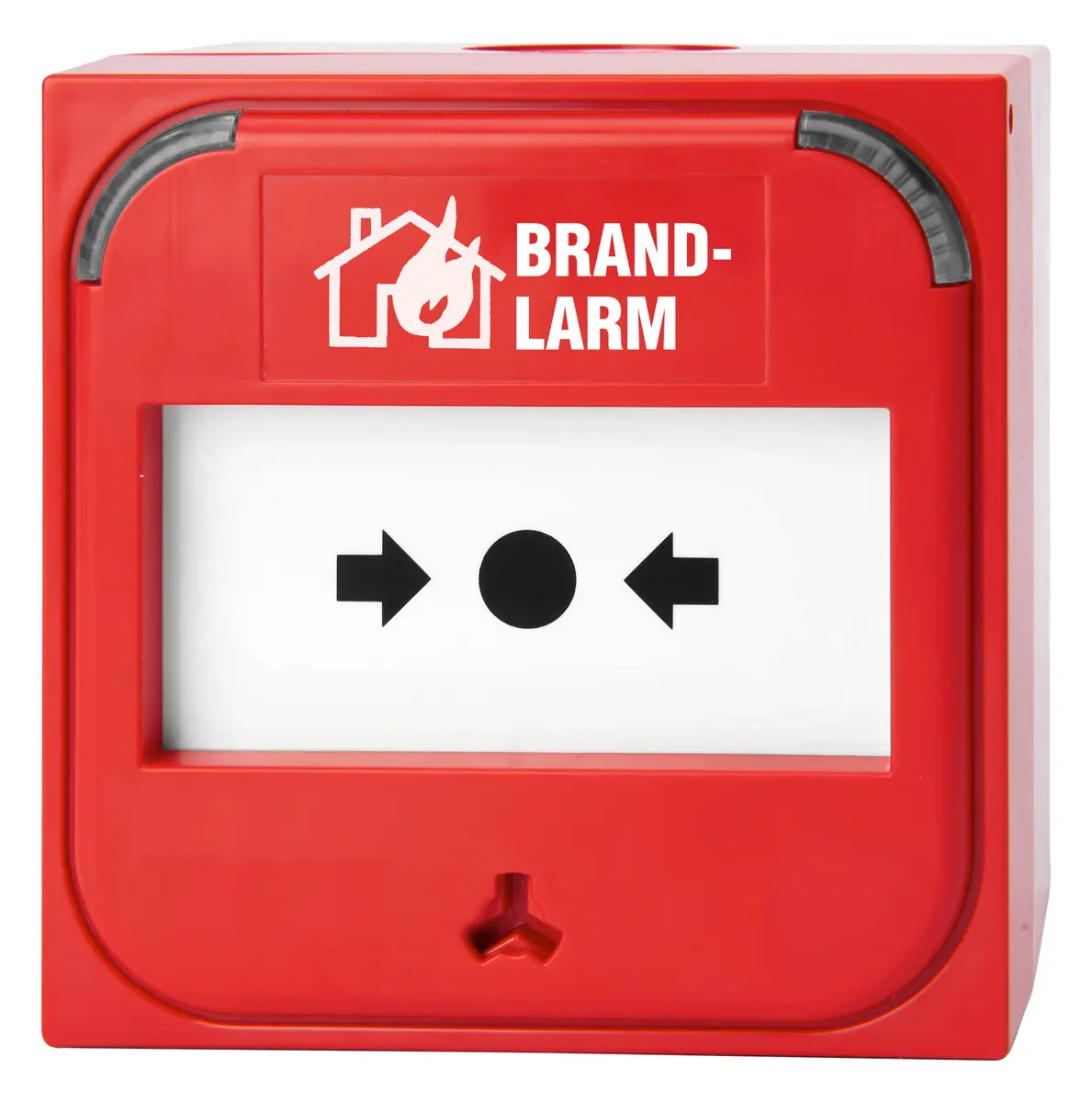

Aritech DM3010RS06 Adresli Yangın İhbar Butonu

Aritech DM3010RS06 (DM3010 Series (EN) ailesi), adresli yangın ihbar butonu ürünüdür. CPR standart/onaylarına uygundur.

General

The DM3000 Series is an intelligent range of addressable manual call points. The DM3010RS06 is a red, single action indoor MCP with a House-on-Fire and "BRAND-LARM" functional indication. It is delivered complete with resettable element, test connector and test key. Multiple optional accessories are available to facilitate most indoor installation requirements.

Aesthetics

This single action MCP is a standard profile, indoor MCP suitable for surface and recess mount installations using standard or legacy European electrical boxes. With its designer dual, tricolour LEDs it offers 180°, clear local indication of its operational status, even from a side view in a passage installation. The clean face of the MCP is further enhanced by a front access & test key facility.

Installation & maintenance friendly

The front facing access for an aesthetically matching test key allows unhindered access regardless of the installation location. The MCP key doubles as a test and disassembly tool allowing removal of the MCP front cover without the need for additional tools.

Compatibility

The DM3000 range may be used on compatible Aritech fire systems. They can in many cases be deployed into existing systems without CIE configuration changes.

Öne Çıkan Özellikler

• Reliable single action manual call point for recess or surface mounting
• Dual, tri-colour status indicators offers 180° alarm visibility
• Tamper resistant design with resettable or frangible element
• Unobtrusive front facing test facility
• Standard mounting options facilitates easy retrofitting to existing installations
• Back box with rear, top and bottom cable entry
• Screen connection terminal in the back box for electrically noisy installations
• Pluggable connector with link through facility for ease of installation and pre-commissioning testing
• An alarm flag on the face of the manual call point allows alarm indication even without alarm LEDs
• Fast, no-tools-required maintenance using the test key
• Up to 128 devices supported per loop

Nerelerde kullanılır?

Yangın anında manuel ihbar ve binadaki kişilerin sesli/ışıklı uyarılması için kaçış yolları ve kat koridorlarında kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Tüm özellikler

• 3000 Series intelligent addressable manual call point
• Reliable single action manual call point for recess or surface mounting
• Dual, tri-colour status indicators offers 180° alarm visibility
• Tamper resistant design with resettable or frangible element
• Unobtrusive front facing test facility
• Standard mounting options facilitates easy retrofitting to existing installations
• Back box with rear, top and bottom cable entry
• Screen connection terminal in the back box for electrically noisy installations
• Pluggable connector with link through facility for ease of installation and pre-commissioning testing
• An alarm flag on the face of the manual call point allows alarm indication even without alarm LEDs
• Fast, no-tools-required maintenance using the test key
• Up to 128 devices supported per loop
