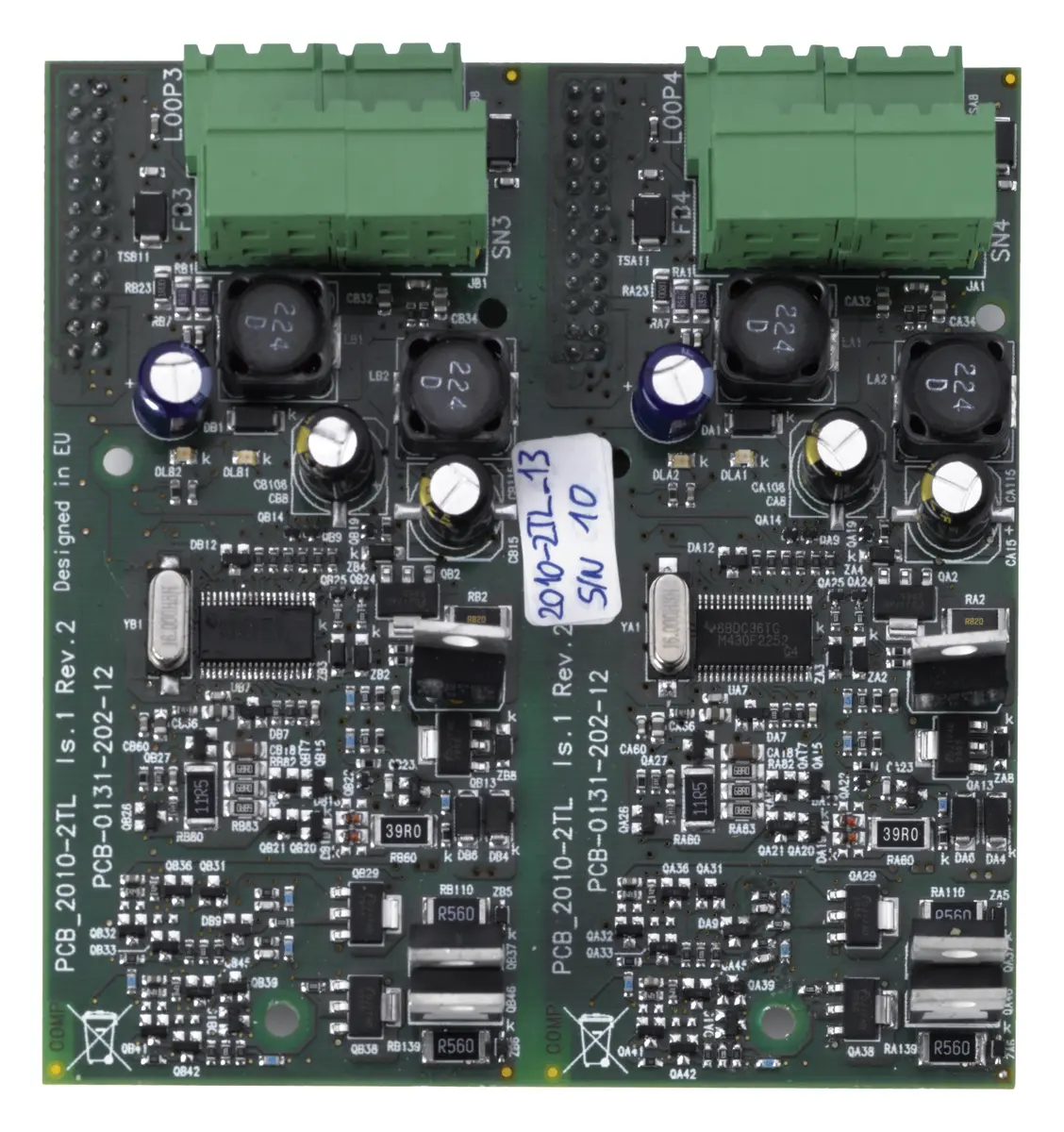

Aritech 2X-A-LB Adresli 2 Loop Loop Kartı

Aritech 2X-A-LB (2X-A Series ailesi), adresli loop kartı ürünüdür. EN54-13, EN54-2, EN54-21, EN54-4 standart/onaylarına uygundur.

Overview

The loop board with plugable connectors adds 2 additional loops to your 2-loop low-end addressable fire panel that doubles the amount of devices to be supported by one panel and 128 extra zones can be programmed. Together with the 2 additional loops, 4 supervised sounder/fire-routing outputs, which can be used as freely programmable outputs, come along as well.

The Application

The loop board allows for bigger single panel applications. Instead of using two 2-loop panels you now have only one panel to power and all the loop wiring is concentrated to one location without having to use a Firenet network.

In case you need to expand an existing system you don't need to put another panel in place. You only have to add the loop board. This makes your system more flexible and easier to expand.

Please note that only the 2-loop panel has this capability of adding the additional loop board.

Mounting

The board can be plugged directly on the front of the main board of the panel on the easy to remove chassis. No additional cabling needs to be done.

Öne Çıkan Özellikler

• 2 High Power Loops expandable with 500 mA per loop
• High loop power PAK to increase the loop power from 500 mA to 800 mA
• Adds up to 128 zones
• 4 programmable outputs
• Plugable connectors
• Plugs directly on the front of the main board and chassis

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
