Aritech 2010-1-RB Konvansiyonel Panel Genişleme Kartı

Aritech 2010-1-RB (1X/ZP1/KFP-C - Panels Comp. &Acc ailesi), konvansiyonel panel genişleme kartı ürünüdür.

Overview

2010-1 fire control panels offer state of the art architecture in configurations that deliver an uncomplicated solution for small to mid-sized conventional applications. They feature an attractive contemporary design that fits with any decor. The gently curved door front offers a distinctive flair. Operator controls are inset in a striking black lexan.

With support for multiple lines of conventional detectors and accessories, these quick-to-configure systems offer versatility that benefits building owners and installation/maintenance companies alike.

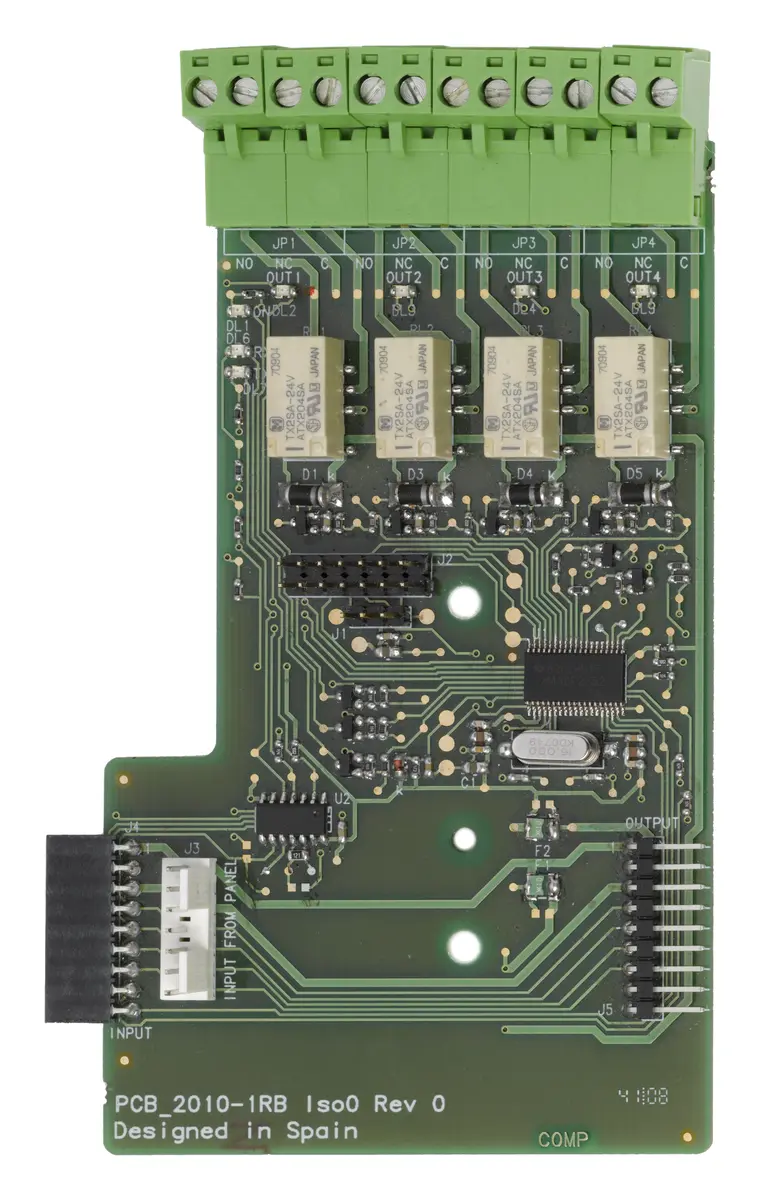

The Output Board

The 2010-1-RB is a programmable, voltage free relay board. It provides 4 auxiliary outputs for the 2010-1 conventional fire alarm control panel. These outputs may be allocated to activate on various alarm statuses of the panel, or to activate on the status of any, all or combinations of the individual fire detection zones in the panel. Up to 4* of these modules may be installed on the 2010-1 panel line.

* Quantity depends on the size of the fire panel cabinet.

Applications

The 2010-1-RB may be used to control building management or access control applications in case of a fire event, or simply where any alarm condition of the panel needs to be repeated, monitored or indicated on a third party system. Typical applications are things such as:

• Building Management Air conditioning control Extraction & pressurisation fan control Fire curtain release Emergency lighting or indicators

• Access control Unlocking emergency escape doors Door holder and fire door release

• Remote reporting and notification Mimic panels and LED repeaters

Öne Çıkan Özellikler

• 4 Potential free, COM-NO-NC, changeover relay outputs
• Bus type, easy cable free panel installation
• Powered from panel bus
• "AND" and "OR" programming functionality
• Output delay setting per output

Nerelerde kullanılır?

Binadaki dedektör, buton ve sirenleri yöneten yangın algılama sisteminin merkezidir; alarmın yerini gösterir, tahliye uyarısını başlatır ve diğer sistemlerle (asansör, havalandırma, kapılar) entegre çalışır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.
